Standard Specifications (we can build to other specs please inquire):
- Fits both Longboard and Street deck molds up to 49" long (50" between uprights).
- Dual air driven Hydraulics (these use an air compressor to drive 2 built in hydraulic pumps to generate up to 40 tons of pressure - air compressor not included.)
- One street deck mold included with price. Longboard molds are available for $100 additional
- Most molds press up to 4 decks at once with 4 stacked on top of each other in the mold. The maximum stack will depend on the deck geometry and some mellower shapes allow even more stacked for fast press cycles.
- We have several standard mold shapes available or you can send us a deck for us to copy the shape and concave etc.
- We build these presses to order so the lead time is typically 3 - 4 weeks from the date of purchase (Note: current lead times are approx 6 - 8 weeks as of March 2021)
Shipped by truck freight, contact us for estimate - Dimensions 54" long x 40" wide x 56" tall. Mold cavity is 50" x 10". We can make custom sizes or dual cavity presses that fit 2 separate molds - please contact us for details.

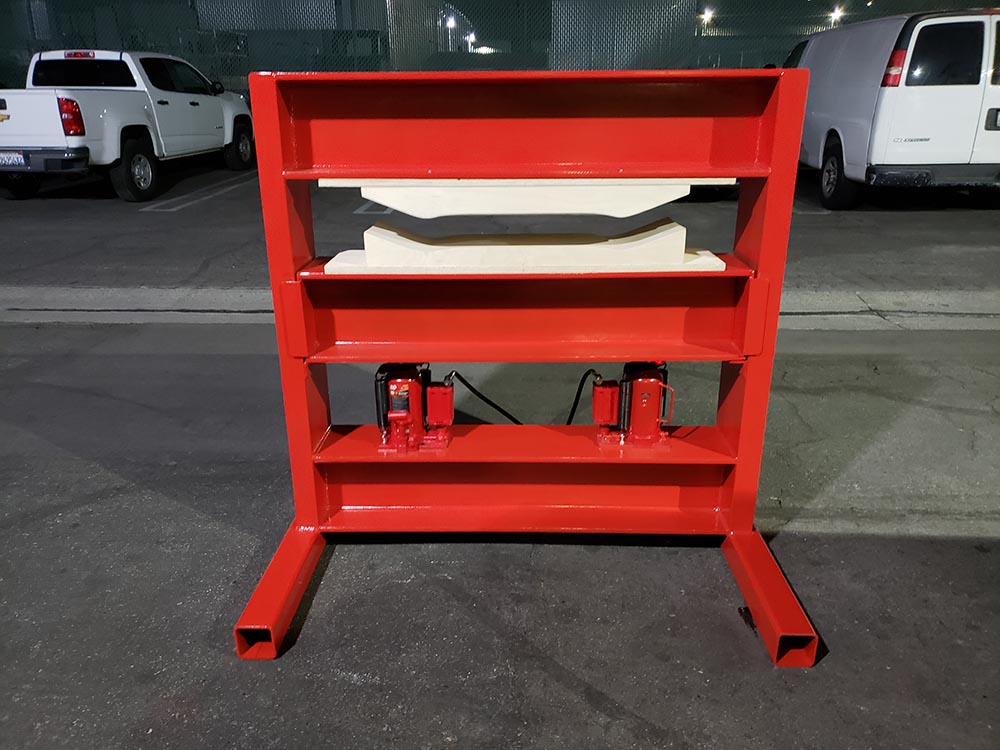

NEW Version for 2021 features heavier beams, channel and structural tube feet instead of the old channel type
$6495 with Street Mold either v1 or v2
$6695 with Pintail Longboard Mold (camber, concave, approx 42" maximum length)
Typical configurations above. Other options and custom dimensions are available, please inquire.
